Fire-Lite offers a complete line of addressable and conventional fire alarm control panels (FACPs) that vary in size and capability to meet a wide range of needs, while offering superior value and flexibility. Fire-Lite Alarm’s innovative, addressable control panels offer a wide range of capabilities to provide superior value and flexibility. They are easy to install and program with notification appliance circuit (NAC) synchronization and enable emergency personnel to quickly locate a fire. The built-in LiteSpeed™ protocol ensures the fastest possible device response times to help reduce property damage and save lives. Fire-Lite’s 24-volt conventional fire alarm control panels (FACPs) bring the latest in microprocessor technology to conventional fire controls. With 2-zone, 4-zone, 5-zone, and 10-zone configurations, these units offer options to meet most local, state, and national requirements in the most efficient and effective way possible.
Fire System Control Panels
ECC-LOC Local Operator Console
EVS-LOC local operator consoles are a part of a family of external remote consoles that allow for extending the display and control to remote locations within a building. The console consists of a complete operator interface that is identical to the main console as well as a built-in microphone with a push-to-talk feature for ‘ALL CALL’ paging. The consoles are housed in a cabinet with a keyed or an optional thumb lock to prevent unauthorized access. The local operator consoles require an external data bus connection, an external audio riser connection, and an external operator interface power connection (24V DC) from the main console.
Features & Benefits:
- Provides messaging status and control of the primary operator console
- Complete operator interface that includes a built-in microphone for ALL CALL paging
- UL 864 listed
- Certified for seismic applications
- A maximum of eight ECC-LOCs can be connected to the primary operating console
- Built-in microphone with push-to-talk feature that can be used for ‘ALL CALL’ paging
- Fourteen programmable message buttons that can be used to activate all speaker circuits remotely
- Sturdy cabinet design with a keyed lock to prevent unauthorized access
- Simple and straightforward user interface
Certifications:
- UL Listed S2424
- CSFM: 7300-0075
- FDNY: COA #6152

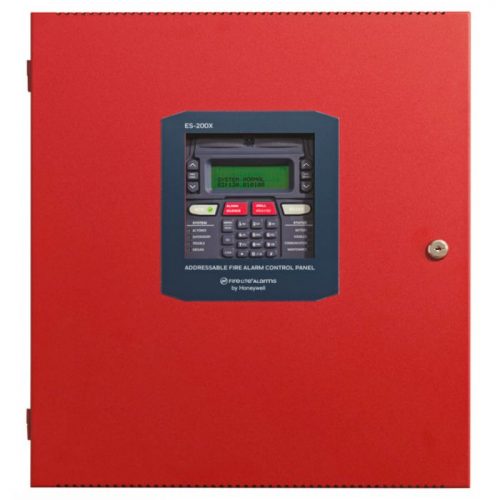

ES-200X FACP with Communicator
ES-200X fire alarm control panels (FACPs) come with a pre-installed communicator and support up to 198 addressable devices (99 detectors and 99 modules). With an extensive list of powerful features, these FACPs are just like other & Fire-Lite® & addressable products, yet fit into applications previously served only by conventional panels. The pre-installed IPOTS-COM is a dual technology (POTS and IP) communicator. The POTS transmits system status (alarms, troubles, AC loss, etc.) to a central station via the public switched telephone network. The IP communicator’s internet monitoring capability sends alarm signals over the internet saving the monthly cost of two dedicated business telephone lines. Although not required, the secondary telephone line may be retained providing backup communication over the public switched telephone line. Optional cellular reporting is available.
Remote and local programming of the control panels is possible using the FS-Tools upload/download utility. Programming databases can be uploaded/downloaded via the panel’s USB port (and USB cable) or via an Ethernet connection using the IPOTS-COM communicator. The USB port also allows for the download or upload of the entire program, history file, walk-test data, current status, and system voltages by means of a USB flash drive. The power supply and all electronics are contained on a circuit board supported on a new quick-install chassis and housed in a metal cabinet.
Main Features
- Compatible with SWIFT® wireless devices
- Auto-programming (learn mode) reduces installation time (reports two devices set to the same address)
- Four built-in, independently programmable, built-in Style Z (Class A) or Style Y (Class B) NACs
- Selectable strobe synchronization for System Sensor®, Wheelock®, and Gentex® devices
- NAC end-of-line resistor matching
- Four programmable function keys for ease of maintenance
- Two programmable relays and one fixed trouble relay
- Built-in programmer
- Integral 80-character LCD with backlighting
Certifications
- UL: S624
- FDNY: COA #6261
- CSFM: 7165-0075:500
- FM Approved
- Listed to UL Standard 864, 10th Edition
- Compatible with SWIFT wireless devices
- Auto-programming (learn mode) reduces installation time
- Four built-in, independently programmable, built-in Style Z (Class A) or Style Y (Class B) NACs

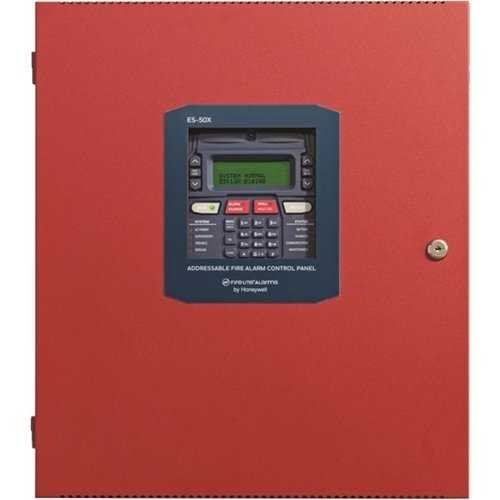

ES-50X Addressable Fire Alarm Control Panel with Communicator
Remote and local programming of the control panels is possible using the FS-Tools upload/download utility. Programming databases can be uploaded/downloaded via the panel’s USB port (and USB cable) or via an Ethernet connection using the IPOTS-COM communicator. The USB port also allows for the download or upload of the entire program, history file, walk-test data, current status and system voltages by means of a USB flash drive. The power supply and all electronics are contained on a circuit board supported on a new quick-install chassis and housed in a metal cabinet.
Features & Benefits:
-
- Compatible with SWIFT® wireless devices
- Auto-programming (learn mode) reduces installation time (reports two devices set to the same address)
- Two independently programmable, built-in Style Z (Class A) or Style Y (Class B) NACs
- Selectable strobe synchronization for System Sensor®, Wheelock®, and Gentex® devices
- NAC end-of-line resistor matching
- Four programmable function keys for ease of maintenance
- Two programmable relays and one fixed trouble relay
- Built-in programmer
- Integral 80-character LCD display with backlighting
Certifications:
- UL: S624
- FM Approved
- CSFM: 7165-0075:0500
- FDNY: COA #6261

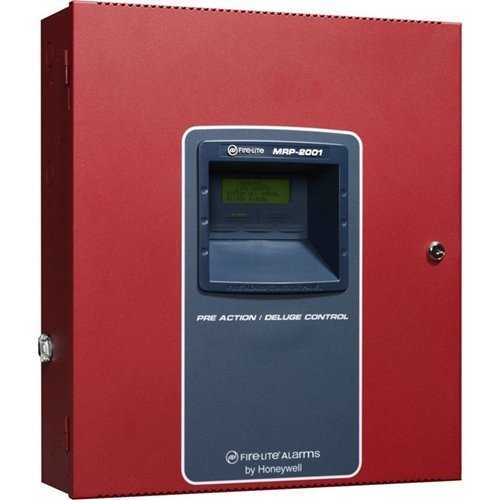

MRP-2001 Fire Alarm Control Panel
MRP-2001 6-zone fire alarm control panels are for single- and dual-hazard deluge and pre-action applications. These panels provide reliable fire detection, signaling and protection for commercial, industrial, and institutional buildings requiring water-based releasing. These FACPs are compatible with System Sensor® i3 detectors, which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory “freeze” signal when the ambient temperature falls below the detector rating of approximately 45 °F (7.22 °C). The control panels are compatible with conventional input devices such as 2-wire smoke detectors, 4-wire smoke detectors, pull stations, water flow devices, tamper switches, and other normally open contact devices.
Features & Benefits:
-
- Dual hazard operation
- Adjustable water flow discharge timer and two soak timers
- Cross-zone (double-interlock) capability
- Six programmable Style B (Class B) initiating device circuits (IDCs)
- Four programmable Style Y (Class B) output circuits
- Built-in NAC synchronization for System Sensor, Wheelock®, Gentex®, Faraday® and Amseco® devices
- 7A total 24V DC output current
- Resettable and non-resettable output power
- Built-in Programmer
- 80-character LCD display (backlit)
Certifications:
- UL: S624
- FM Approved
- CSFM: 7165-0075:0216
- MEA: 333-07-E

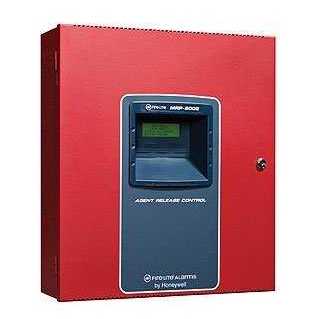

MRP-2002 Agent Release Control Panel
MRP-2002 agent release control panels are 6-zone FACPs for single- and dual-hazard agent releasing applications. They provide reliable fire detection, signaling, and protection for commercial, industrial, and institutional buildings requiring agent-based releasing.
These panels are compatible with System Sensor® i3 detectors, which are conventional smoke detectors that can transmit a maintenance trouble signal to the FACP indicating the need for cleaning and a supervisory “freeze” signal when the ambient temperature falls below the detector rating of approximately 45 °F (7.22 °C). They are also compatible with conventional input devices such as 2-wire smoke detectors, 4-wire smoke detectors, pull stations, water flow devices, tamper switches, and other normally open contact devices.
Features & Benefits:
- 6-zone Style B (Class B) or 6-zone Style D (Class A) with optional modules
- Four programmable Style Y (Class B) output circuits
- Extensive transient protection
- Dual hazard operation
- Adjustable pre-discharge, discharge, and water flow delay timers
- Programmable abort operation
- Cross-zone capability
- Pre-programmed and custom application templates
- Built-in NAC synchronization for System Sensor®, Wheelock®, Gentex®, Faraday® and Amseco® devices
- Built-in programmer
Certifications:
- UL: S624
- FM Approved
- CSFM: 7165-0075:0216
- MEA: 333-07-E
- Seismic Listing: Reference certificate of compliance VMA – 45894-01 by the VMC Group

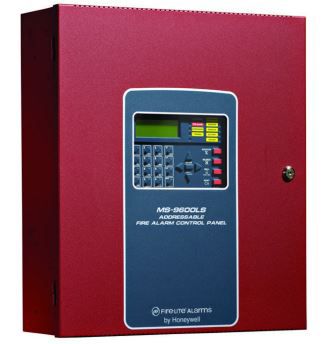

MS Addressable Fire Alarm Control Panel
FireLite’s MS-9600LS(E) and MS-9600UDLS(E) are compact, cost effective, intelligent addressable FACPs (Fire Alarm Control Panels) with an extensive list of powerful features. The combination of FireLite’s newer series devices and legacy 300 Series devices, along with the MS-9600LS(E) or MS-9600UDLS(E) FACP, offer the latest in fire protection technology. LiteSpeed™ is a patented technology that polls 10 devices at a time looking for new or different information. When new information is found at a specific address, the system polls that device several times for any new data. This improvement allows a fully loaded panel with up to 636 devices to report an incident and activate the notification circuits in under 10 seconds. With this polling scheme, devices can be wired on standard twisted, unshielded wire up to a distance of 10,000 feet per loop. Each Signaling Line Circuit (SLC) loop supports up to 159 addressable detectors including photoelectric, photoelectric with heat, beam, ionization, photoelectric duct, fixed heat, fixed heat with rate-of-rise, and fixed high-heat detectors. It also supports up to 159 addressable modules including monitor (two-wire detector, normally open devices), dual-monitor functions (two monitor circuits from one module, two addresses used), multi-monitor (multiple monitor circuits from one module, multiple addresses used), control (for Notification Appliance Circuits), and relay (two Form-C) modules.
Features & Benefits:
- Easy mount chassis.
- 7 amp switching power supply.
- Large enclosure allows 18 amp-hour batteries
- 2 plug-in communicator standard with MS-9600UDLS/E
Certifications:
- ULC: S624 (MS-9600LSC only- see DF-60438)
- FM APPROVED: to UL ANSI 864
- CSFM: 7170-0075:217
- MEA: 87-08-E
- IBC 2012, IBC 2009, IBC 2006, IBC 2003, IBC 2000 (Seismic).
- CBC 2007

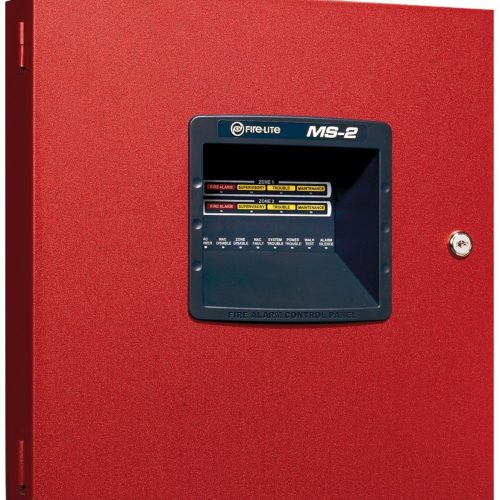

MS-2 Fire Alarm Control Panel
The Fire-Lite MS-2 and MS-2E Fire Alarm Control Panels (FACPs) bring the latest in microprocessor technology to conventional fire controls. The MS-2 is compatible with the i³™ smoke detectors from System Sensor with drift compensation, maintenance alert, and freeze warning. Automatic synchronization of audio/visual devices with three selections for manufacturer protocol. The Notification Appliance Circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires.
Features & Benefits:
- Two initiating zones compatible with 2- and 4-wire smoke detectors, one zone programmable for combo, supervisory and waterflow
- One Notification Appliance Circuit (NAC) with built-in horn/strobe synchronization for System Sensor®, Wheelock® or Gentex® with selectable silence
- 3.0 amps total usable current
Certifications:
- UL Listed: S624.
- MEA: 297-01-E.
- CSFM: 7165-0075:200
L-Series Ceiling Chime Strobe - Combination Strobe
The FireLite MS-2 And MS-2E Fire Alarm Control Panels (FACPs) bring the latest in microprocessor technology to conventional fire controls. The MS-2 is compatible with the i3 smoke detectors from System Sensor with drift compensation, maintenance alert And freeze warning. Automatic synchronization of audio/visual devices with three selections for manufacturer protocol. The notification appliance circuit (NAC) protocol can silence audible devices while strobes continue to flash, using a single pair of wires.
Features &- Benefits:
- Drift compensation automatically adjusts detector sensitivity and increases resistance to false alarms caused by dust accumulation
- Maintenance alert LEDs (per zone) warn of excessive dirt accumulation, preventing false alarms (meets NFPA 72 requirement s)
- Detector sensitivity is automatically measured by the detector, which automatically adjusts its sensitivity back to the factory settings when it becomes more sensitive due to contaminants settling in the chamber
- Wireless handheld sensitivity meter eliminates the need for voltmeters, magnets And a physical connection to the detector. The reader displays sensitivity in terms of percent per foot obscuration And provides text status indication
- Supervisory LED (per zone) provides warning if a detector senses temperature approaching freezing
- Special test protocol And LED indication allows quick test of all detectors without need for a ladder
- Synchronization of standard ANSI audible signals as required by NFPA 72
- Synchronization of ADA compliant strbes per NFPA 72, selectable for system sensor, wheelock, and gentex protocols, selective silence for manual silence of horns whilestrobes continue to flash on the same NAC, alarm verification selectable for each zone
- Silence inhibit, auto silence, stro be synchronization, silent or audible walk test operation mode commanded from the front keypad, with automatic return-to-normal after one hour of inactivity
- Each zone may be programmed for supervisory or fire- each zone has separate red and yellow LEDs , disable switches provided for each zone
- LED indicators: fire alarm, supervisory, trouble, maintenance, ac power, zone disable
- The cabinet can be surface mounted. The door is removable during installation by opening and lifting it off the hinges. The cabinet mounts using two key slots at the top of the backbox and two additional 0.25 Inch diameter holes at the bottom
Certifications:
- UL S624
- MEA 297-01-E
- CSFM 7165-0075:200
